U2-E11. Automated microdispensing system for microarray technology



Automated microdispensing system for microarray technology

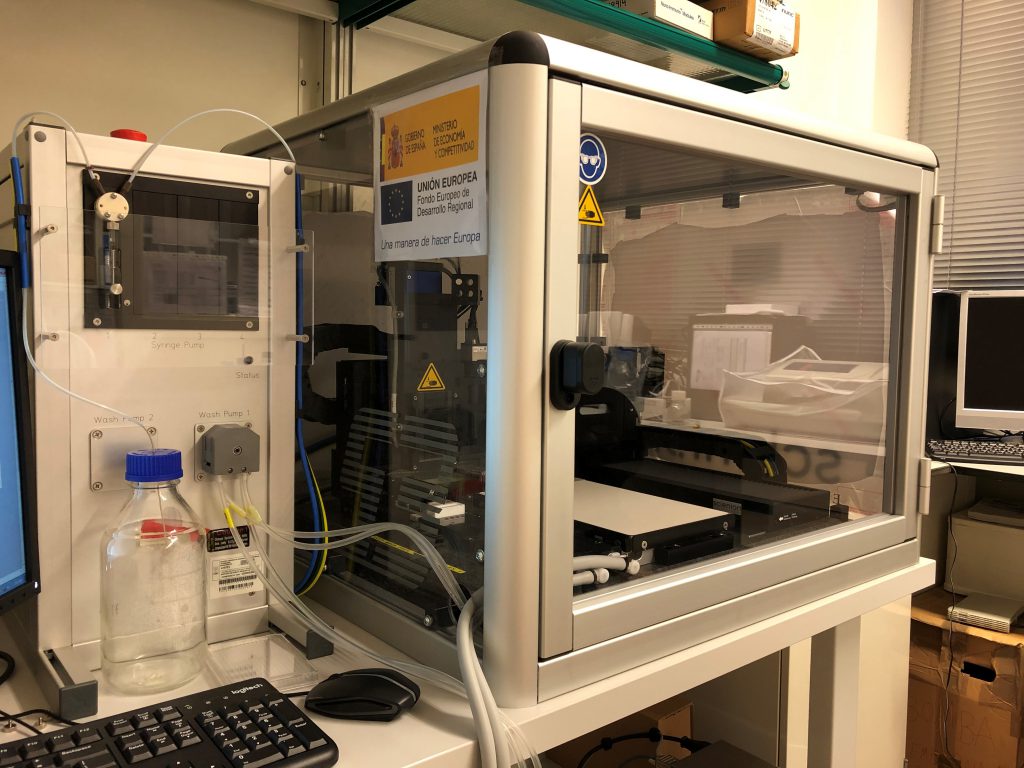

The sciFLEXARRAYER S3 is an automated piezo driven, non-contact dispensing system of ultra-low volumes specifically designed as an economical entry unit for academia and R&D labs.

It consists of XYZ-stages with spindle drives, a piezo dispensing unit and precision equipment for liquid handling. The system handles volumes from 50 picoliters up to several microliters.

The S3 is suitable for the production  DNA, protein, glycan microarrays and biosensor loading, MALDI-MS sample preparation and target loading, accurate dilution series and addition of tiny aliquots, printing chemical libraries, spotting onto disc format (round targets) and customized targets, assay development and screening assays, microarray-based analysis

Main features:

Dispense Volume 30 – 800 pL/drop
No. of Dispense Capillaries From 1 to 8 PDC channels
Distance Dispense Capillaries 4.5 or 9 mm increments
Spottable Area 227 x 276 mm
Capacity Up to 4 MTPs or 36 standard glass slides
Axis system X-Y-Z spindle drives
Resolution (step size) 5 µm
Precision < 5 µm
Accuracy < 15 µm
Options Live stream camera, vaccum target holder, online target alignment, online array QC software
Dimensions (L,W,H) with enclosure 760 x 850 x 650 mm
Weight 130 kg
